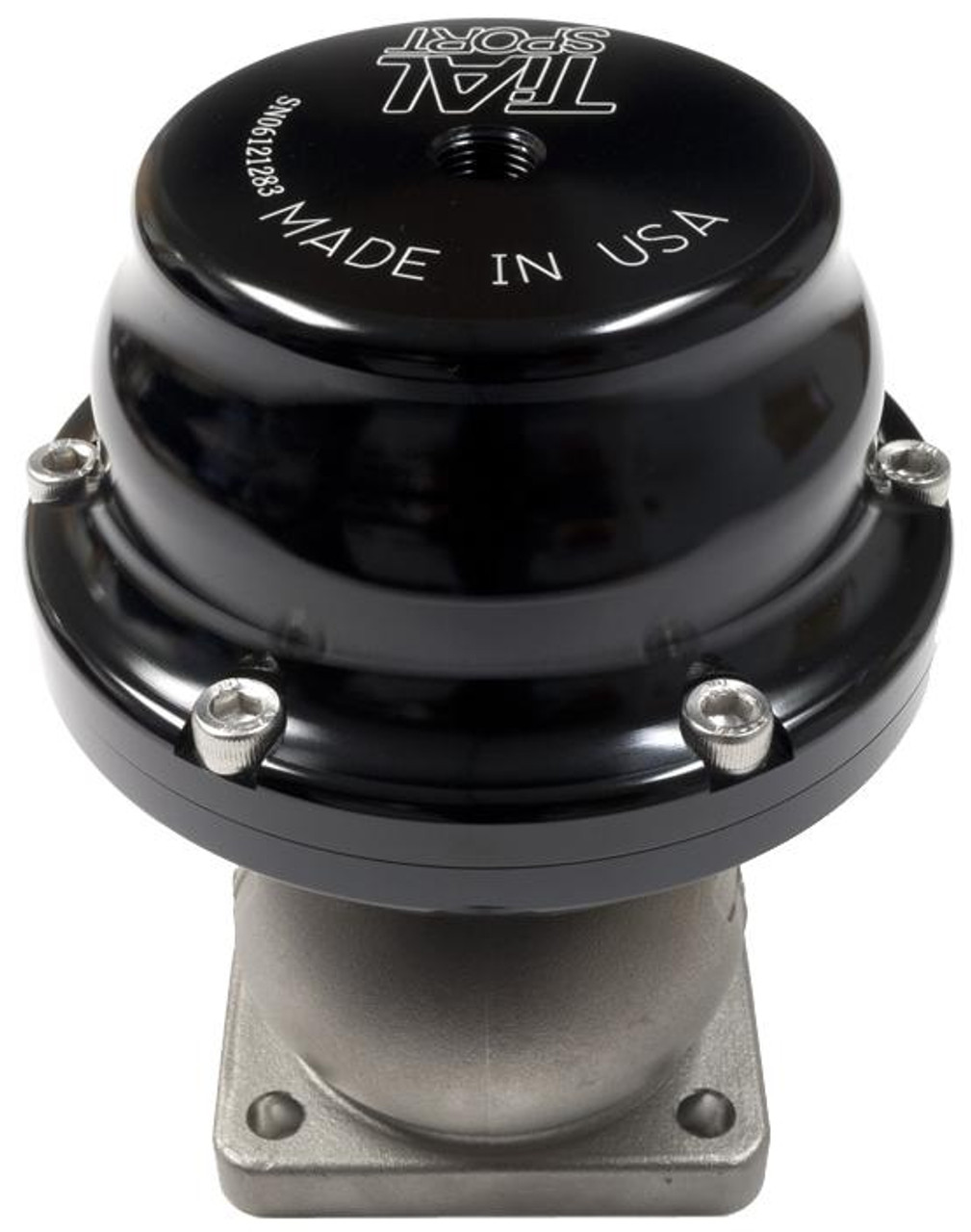

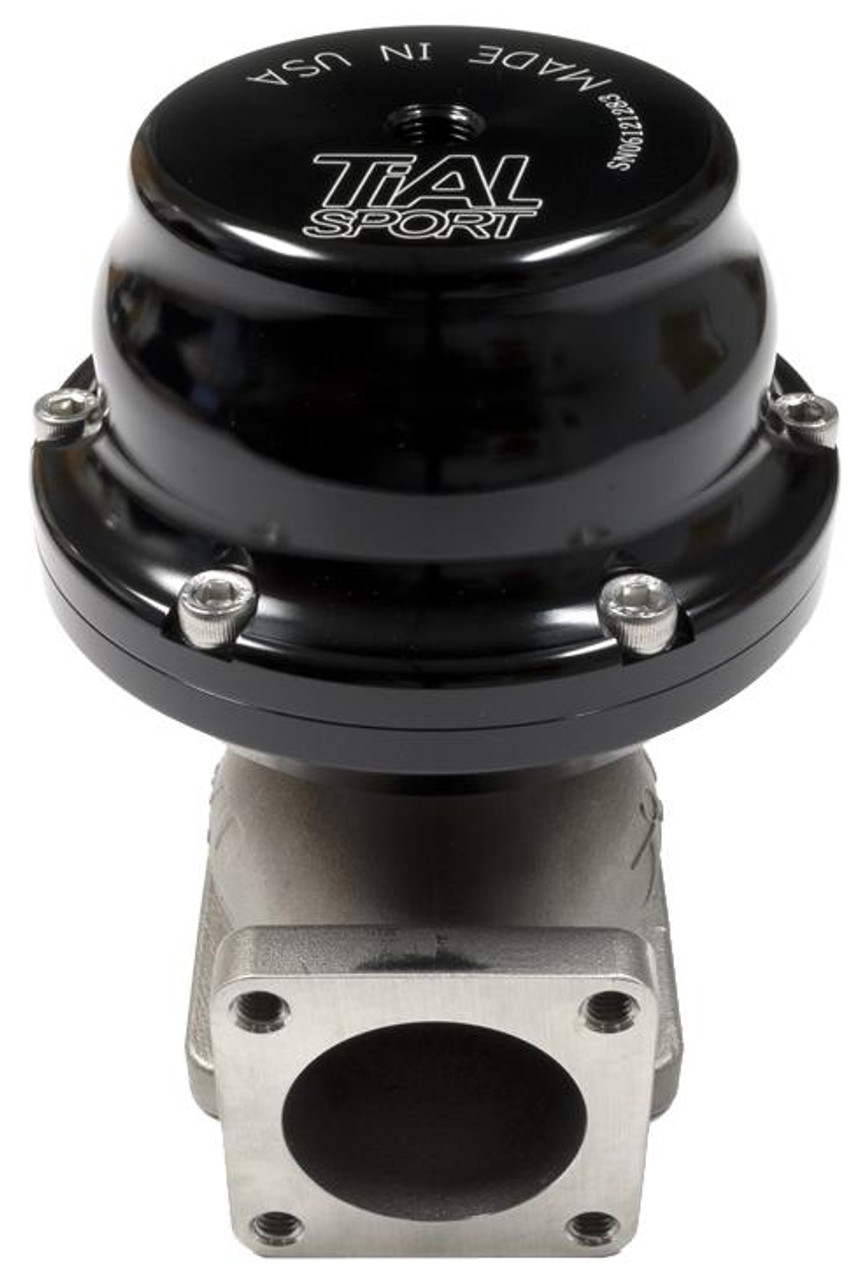

TiAL F41 Wastegate 41mm F41-1.5

click to zoom in

TiAL F41 Wastegate 41mm F41-1.5

Part Number:

F41-1.5

MSRP:

Your Price: $369.00

Deal ends in:

Description

Description

The TiAL F41 Wastegate bridges the gap between the 38mm and 44mm units. It has a unique 4 bolt design that is backwards compatible with the old TiAL F40 wastegate. This is the perfect wastegate for those that need a bit better diaphragm to valve ratio over the 44mm. The F41 is no longer in production, after the current stock is depleted no more will be made.

Specifications

High temp NiCrFe based alloy is used for valve and 347SS valve housing will offer longer product life compared to competing designs.
High temperature silicone Nomex reinforced actuator diaphragm.
17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature, resist relaxing at temperature to 900F (483C).
Nitronic 60 Stainless Steel is used for the valve seat, and valve bushing.
All Stainless Steel hardware.
Mating weld flanges are 304L
Color anodized aluminum actuator (Silver, Red, Blue, Purple, Black).

Included with every Tial F41:

F41 Assembly
F41 Valve Seat
2 TiAL Air Fittings
8 SS Allen Head Bolts and Washers

Application:

UNIVERSAL NON APPLICATION SPECIFIC

Color:

Silver

Pressure:

1.5 Bar (21.75 psi)
