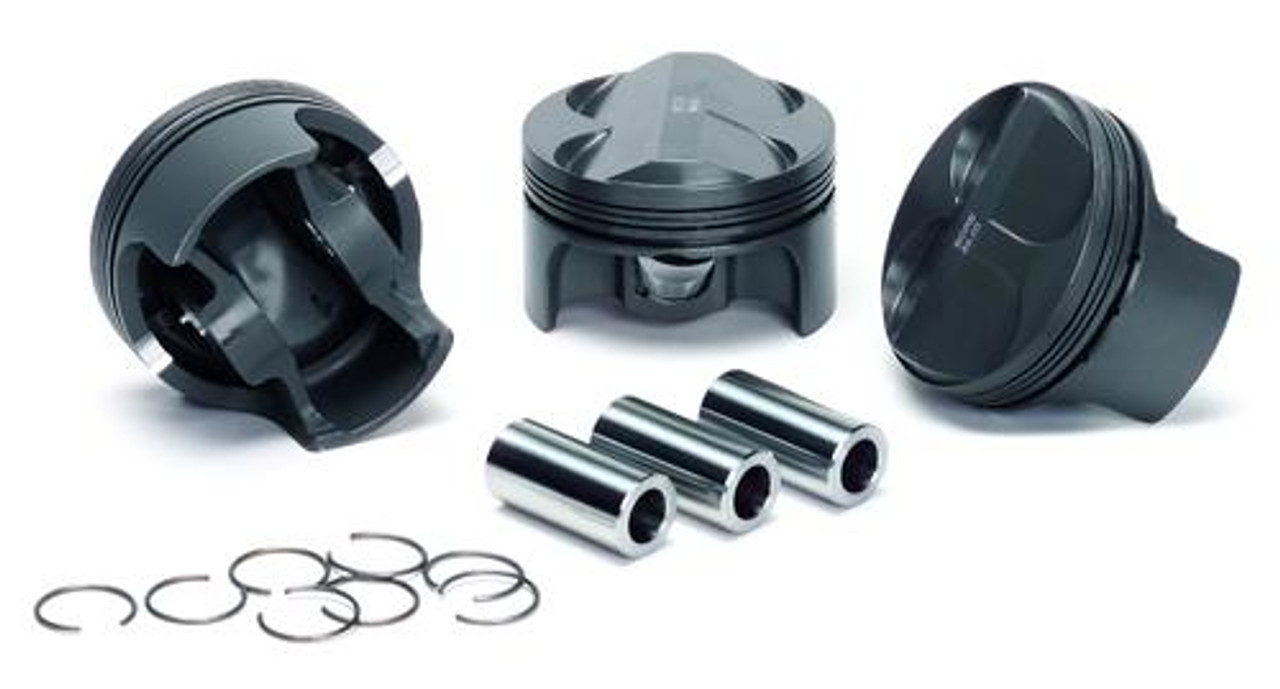

Supertech Pistons are manufactured from extruded high silicone, enhanced 4032 alloy (with additional Cu, Ni & Mg) that had low thermal expansion, excellent wear resistance and higher thermal conductivity. Supertech Pistons, with this alloy, have withstood up to 42psi of boost, with alcohol, without any problems.
A two or three step forging process yields a fine structural grain which are then submitted to several machining steps in state of the art CNC machines.
Several heat treatments provide the piston with high tensile strength and evenly distributed hardness.
Contact reduction grooves are standard, and pin bores are honed and reamed for precise fit. Wrist pins are constructed of cold extruded chrome moly steel for high strength and used with wire clip locks.
Finally, the pistons receive a phosphate dry lubricant coating to protect the rings against micro-welding and enhance lubrication on the skirt/cylinder area.
Compression ratios are computed with.030 head gasket and.010 deck unless indicated in each case.
Application:
- 2013-2015 ACURA ILX K24A2 Block w/ K20 Head
- 2002-2006 ACURA RSX K24A2 Block w/ K20 Head
- 2004-2014 ACURA TSX K24A2 Block w/ K20 Head
- 2003-2015 HONDA ACCORD K24A2 Block w/ K20 Head
- 2001-2015 HONDA CIVIC K24A2 Block w/ K20 Head
- 2007-2014 HONDA CR-V K24A2 Block w/ K20 Head
- 2003-2011 HONDA ELEMENT K24A2 Block w/ K20 Head
