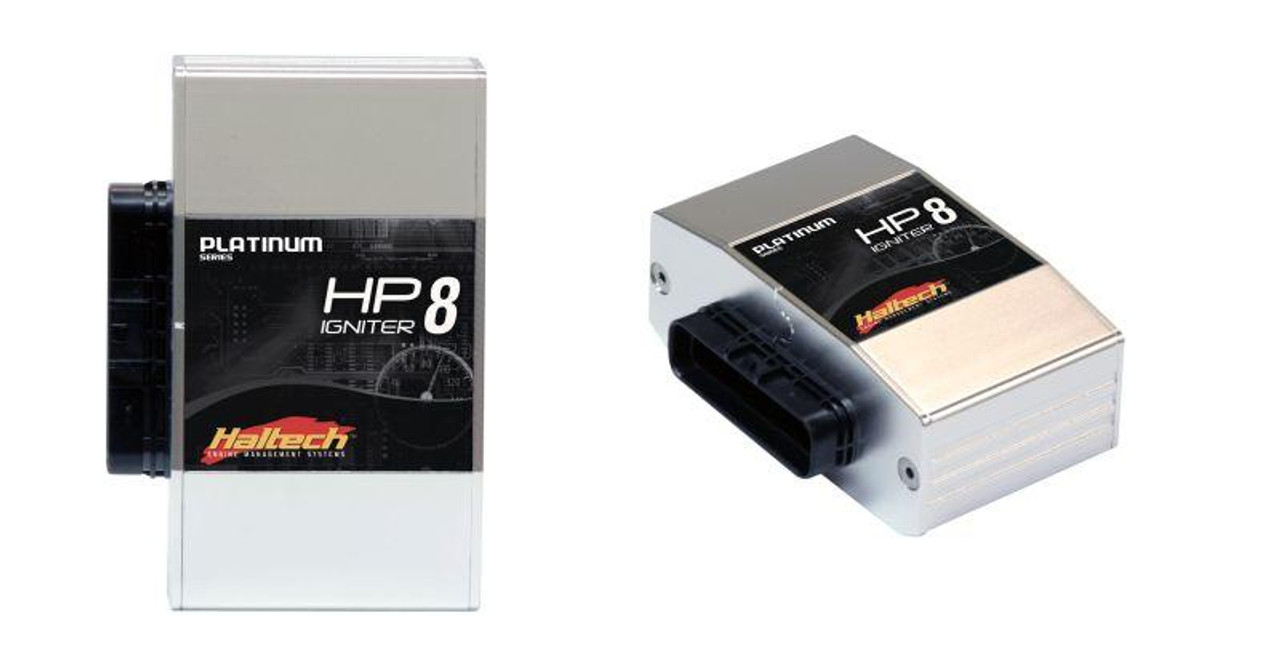

The Haltech High Power Ignition Module is capable of driving up to 15 Amps per channel, allowing ignition coils to reach their maximum coil energy. Available in 4, 6 & 8 channel packages, the HPI is an ideal upgrade for any transistor ignition system.When used in conjunction with a Haltech Platinum ECU, the HPI provides the perfect ignition system for any high performance engine.
Engine Suitability:
Various
Features:
HPI4 = 4 x Ignition Outputs
HPI6 = 6 x Ignition Outputs
HPI8 = 8 x Ignition Outputs
Power Requirements:
Source: 8.6 to 16.5 Volts DC
Physical Dimensions:
Length: 55mm
Width: 104mm
Height: 40mm
Weight:
ECU: 285g (0.62 lb)
Optional Harness: 395g (0.87lb)
