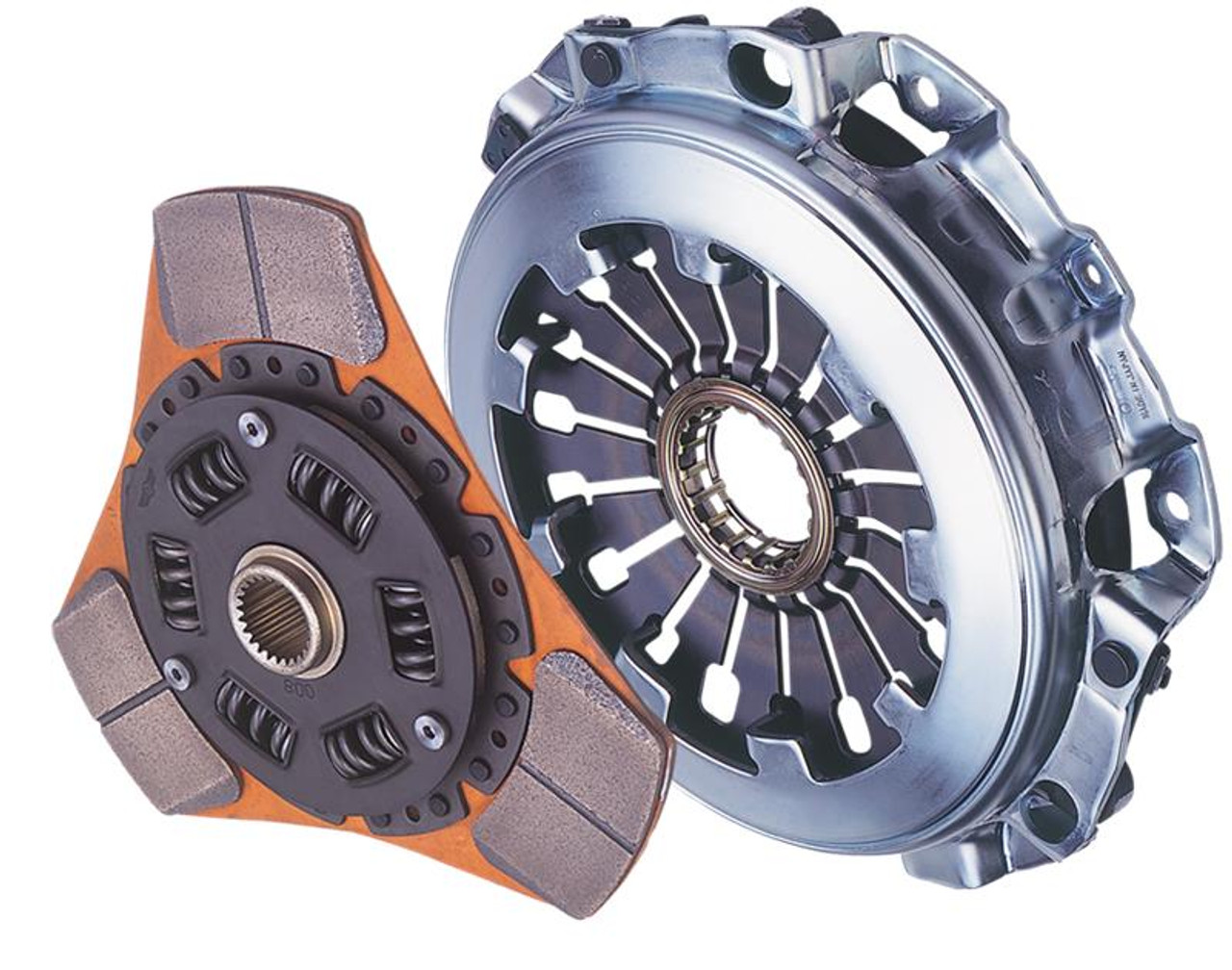

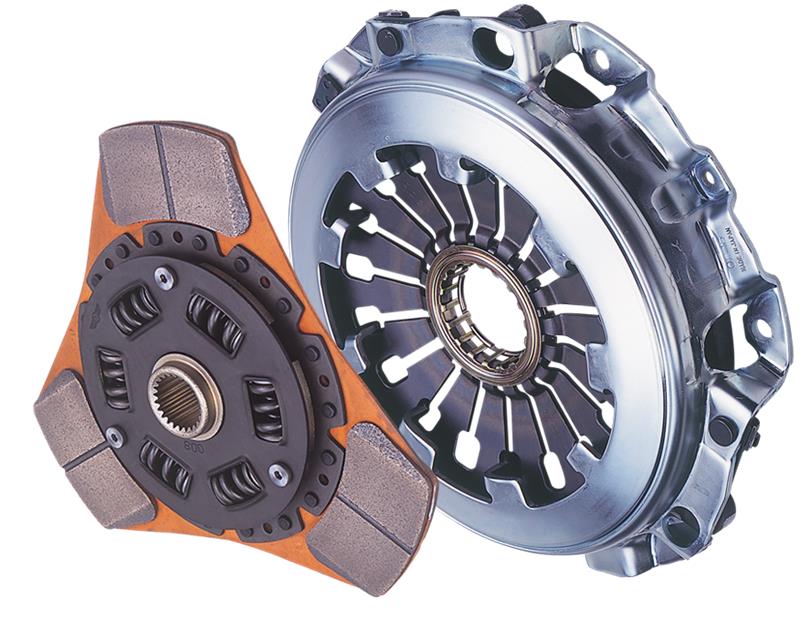

EXEDY Racing Clutch Stage 2 Cerametallic Clutch - Cushion Button Disc 16956A

click to zoom in

EXEDY Racing Clutch

EXEDY Racing Clutch Stage 2 Cerametallic Clutch - Cushion Button Disc 16956A

Write a Review
Part Number:
16956A
MSRP: $730.85
Your Price: $621.23
(You save $109.62 )
Deal ends in:
Nov 27 2023, 00:00:01


EXEDY cerametallic clutches are designed to handle the abuse of high power modified engines. Our cerametallic friction material can handle much more abuse than stock type disc assemblies without slipping and fading.

All EXEDY Stage 2 cerametallic clutch discs have sprung center dampers to reduce the impact and shock loads transmitted through the drivetrain. We offer two types of cerametallic discs, “thick” and “thin” along with a cushion button disc.

Thick Disc
The “thick” discs have better heat capacity and therefore better durability in demanding applications. Even with the “thick” disc, our three and four puck designs typically have less inertia than a stock disc and work well for street, rally and track use.

Thin Disc
The “thin” discs offer greatly reduced inertia to improve shift effort, allow for quicker shifting, and improve synchro durability. These discs are approximately 1/2 the thickness of a stock disc and are recommended for circuit track use only.

Cushion Button Disc
The remarkable Cushion Button Disc combines cerametallic button facing with marcel cushion springs to maintain comfortable driving while supporting a respectable amount of power. It’s smooth engagement is ideal for the street, and thanks to its heavy duty sprung hub dampening assembly, can handle the power of high torque motors. The Cushion Button Disc is currently available for limited applications, however more fitments will be released in the near future.

Clutch Cover
These clutch covers are designed to achieve a clamping load that is approx. 40% higher than the genuine part allowing a higher torque transmitting capacity. Ductile material is used for all pressure plates and, high burst strength can be achieved in all temperature ranges.

All EXEDY Racing Stage Ceremetallic Clutch Kits carry SFI 1.1 Certification. Which means, when you buy these products, you can be confident they are certified for use in competitive motorsports.

PLEASE NOTE: All referenced torque ratings are measured at the wheels.

Application:
  • 1996-2000 TOYOTA 4RUNNER L4 2.7 3RZ-FE
  • 1994-1998 TOYOTA T100 L4 2.7 3RZ-FE
  • 1995-2004 TOYOTA TACOMA L4 2.7 3RZ-FE
  • 2001-2004 TOYOTA TACOMA L4 2.4 2RZ-FE 4WD
UPC:
651099113111
Weight:
19.50 LBS
Clamp Load:
1985
Disc Diameter (Inches):
9.8
Disc Diameter (Millimeters):
250
Spline Count:
21
Spline Size (Inches):
1-3/16
Spline Size (Millimeters):
29.8
Torque Capacity (ft/lbs.):
309
